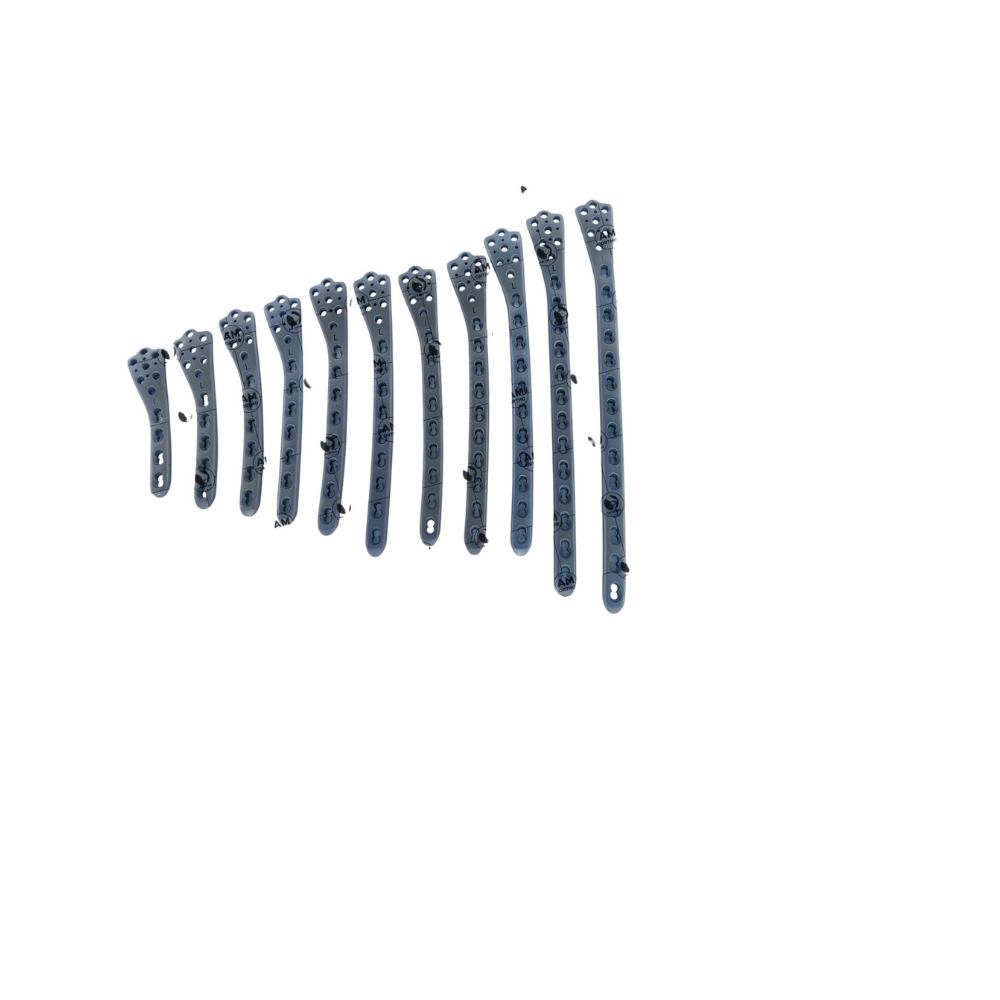

The 4.5/5.0mm DF Safety Locking Plates Left Set is a professional orthopedic implant system developed for the fixation of distal femoral fractures, complex trauma, corrective osteotomies, and reconstructive orthopedic procedures. This comprehensive 11-piece implant set includes left-sided distal femur (DF) safety locking plates in 4 to 14 hole configurations, offering surgeons a versatile selection for treating fractures of varying complexity.
Manufactured from medical-grade Titanium Grade 5 (Ti-6Al-4V ELI), these locking plates provide an excellent combination of high mechanical strength, lightweight performance, exceptional corrosion resistance, and superior biocompatibility. The anatomically contoured left-sided design closely matches the natural shape of the distal femur, reducing the need for intraoperative contouring and improving implant fit.
The 4.5/5.0mm Safety Locking Plate System combines fixed-angle locking technology with compression plating principles to create a rigid and stable construct. When used with compatible 4.5mm cortical screws and 5.0mm locking screws, the system enhances fracture stability, minimizes screw loosening, and promotes reliable bone healing, even in osteoporotic or comminuted fractures.
Precision-machined locking holes and a polished low-profile finish help ensure accurate screw placement while reducing soft tissue irritation. This implant set is ideal for orthopedic surgeons, trauma centers, hospitals, and specialty orthopedic practices performing lower extremity fracture fixation.
Key Features
- Complete 11-piece orthopedic implant set
- Left anatomical Distal Femur (DF) Safety Locking Plates
- 4.5/5.0mm locking plate system
- Plate sizes from 4 to 14 holes
- Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI)
- Fixed-angle locking technology
- Anatomically contoured left-sided design
- High strength-to-weight ratio
- Excellent biocompatibility
- Superior corrosion resistance
- Precision-machined locking holes
- Smooth polished surface finish
Product Specifications
| Specification | Details |
|---|---|
| Product Name | DF Safety Locking Plate Set |
| Plate Type | Distal Femur Safety Locking Plate |
| Plate Size | 4.5/5.0 mm |
| Plate Orientation | Left |
| Hole Configuration | 4H–14H |
| Quantity | 11 Plates |
| Material | Titanium Grade 5 (Ti-6Al-4V ELI) |
| Compatible Screws | 4.5 mm Cortical Screws & 5.0 mm Locking Screws |
| Finish | Polished |
| Sterility | Supplied Non-Sterile (Sterilize Before Use) |
| Application | Orthopedic Trauma & Reconstructive Surgery |
Applications
- Distal femur fracture fixation
- Supracondylar femur fractures
- Intra-articular distal femur fractures
- Corrective osteotomy procedures
- Trauma surgery
- Reconstructive orthopedic surgery
- Lower extremity fracture stabilization
- Orthopedic hospitals
- Trauma centers
- Advanced fracture management
Frequently Asked Questions (FAQs)
Q1. What is included in this implant set?
The set includes 11 left-sided 4.5/5.0mm DF Safety Locking Plates with 4 to 14 hole configurations.
Q2. What material are the plates made from?
The plates are manufactured from medical-grade Titanium Grade 5 (Ti-6Al-4V ELI) for superior strength, corrosion resistance, and biocompatibility.
Q3. Which screws are compatible with these plates?
The plates are designed for use with 4.5mm cortical screws and 5.0mm locking screws, depending on the surgical fixation technique.
Q4. What procedures are these plates intended for?
They are designed for distal femur fracture fixation, trauma surgery, corrective osteotomies, and reconstructive orthopedic procedures.
Q5. Are the implants supplied sterile?
No. These implants are supplied non-sterile and should be sterilized according to validated hospital sterilization protocols before surgical implantation.
