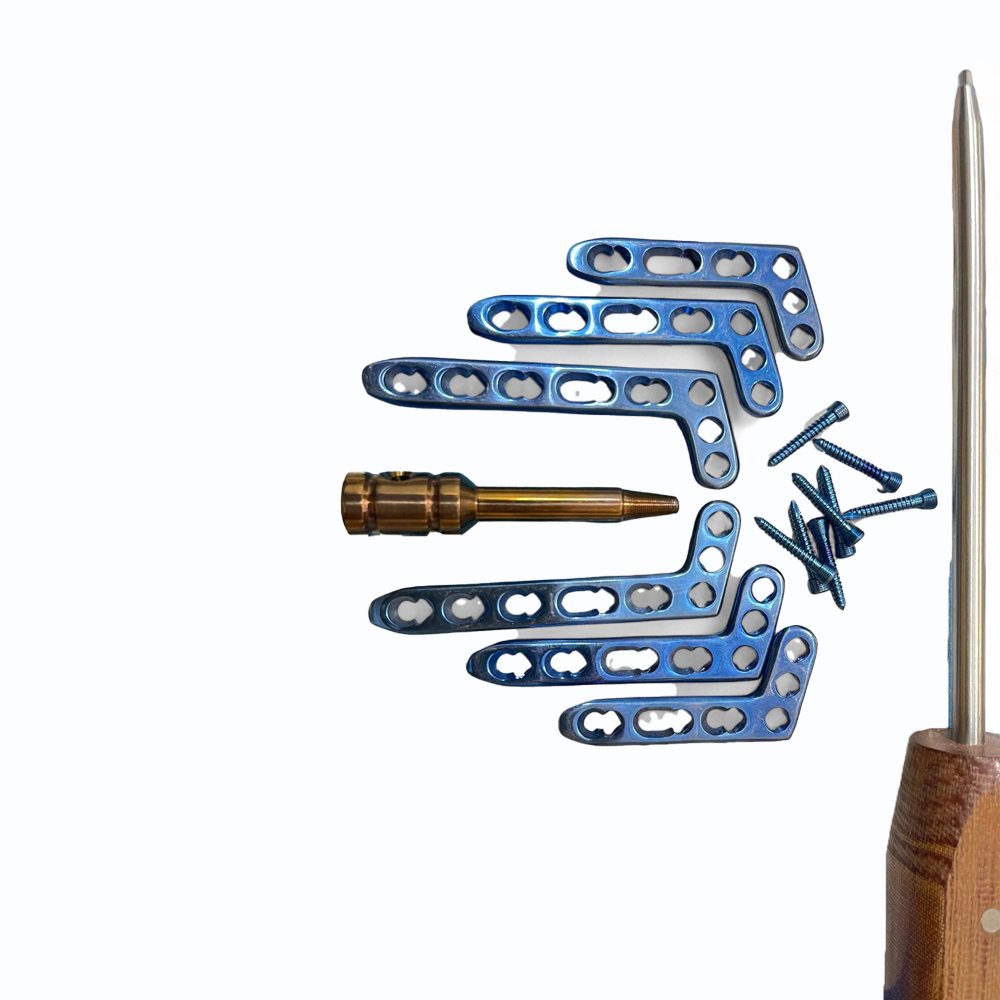

The Dorsal Distal Radius Variable Angle Oblique L Plate Titanium is a specialized orthopedic fixation implant designed for stabilization of appropriately selected distal radius fractures through a dorsal approach. Its oblique L-shaped configuration provides targeted support around the distal radius, while variable-angle locking technology allows compatible screws to be positioned within the permitted angular range according to the fracture pattern and available bone.

Distal radius fractures vary considerably in their location, displacement, comminution, and involvement of the articular surface. Some fracture patterns include significant dorsal fragmentation or require a dorsal fixation strategy. In appropriately selected cases, a dedicated dorsal distal radius locking plate can provide direct support to fracture fragments and establish a stable fixation construct.

The oblique L-plate configuration is designed to accommodate selected anatomical and fracture-specific requirements. Its angled geometry can provide a targeted fixation profile for dorsal distal radius applications. Proper plate selection and positioning should be based on preoperative imaging, fracture morphology, bone dimensions, soft-tissue considerations, and the surgeon’s preferred surgical technique.

The variable-angle locking system permits compatible screws to be inserted at different trajectories within the manufacturer’s specified range. This flexibility can allow the surgeon to direct screws toward selected fracture fragments and optimize available bone purchase. The locking mechanism should only be used with compatible screws and system-specific instrumentation.

The product is available in 3-, 4-, and 5-hole configurations, providing multiple options for fixation length and screw distribution. Shorter plates may be appropriate for selected fractures requiring a limited fixation span, while longer configurations can provide additional fixation points when required. The appropriate configuration should be selected according to the fracture pattern and intended fixation construct.

The plates are manufactured from titanium, a material widely used in orthopedic implant applications because of its favorable strength-to-weight characteristics, corrosion resistance, and established biocompatibility. The precise titanium grade, mechanical specifications, dimensions, and surface finish should be confirmed through the manufacturer’s technical documentation.

The system includes compatible screws designed for use with the variable-angle locking plate. Correct screw diameter, length, and trajectory are essential for achieving appropriate fixation. Around the distal radius, screw positioning requires particular attention because of the proximity of the radiocarpal joint and surrounding tendons and soft tissues. Appropriate imaging and intraoperative assessment should be used to verify screw placement.

The 56-piece selection provides multiple plate and screw configurations for orthopedic trauma departments, hospitals, wrist surgery centers, and medical implant suppliers. Maintaining multiple plate lengths and configurations can support implant selection for a variety of appropriately selected distal radius fracture patterns.

Dorsal distal radius plating may be considered for selected displaced, unstable, comminuted, or dorsal fragment-dominant fractures where dorsal fixation is clinically appropriate. It is not intended to imply suitability for every distal radius fracture. The final fixation strategy should be determined by a qualified orthopedic surgeon based on clinical examination, radiographic findings, fracture classification, bone quality, and patient-specific considerations.

Proper surgical technique is essential for implant performance. Compatible drill guides, drills, depth gauges, screwdrivers, and reduction instruments should be used according to the manufacturer’s surgical technique. The plate should be positioned carefully to achieve appropriate fracture support while minimizing interference with surrounding anatomical structures.

The implant should be handled carefully to prevent contamination, scratches, deformation, or damage to the variable-angle locking interface. Plate bending or modification should only be performed if specifically permitted by the manufacturer. Reusable instruments should be cleaned, inspected, packaged, and sterilized according to validated healthcare-facility procedures.

With 3–5 hole configurations, an oblique L-shaped dorsal design, variable-angle locking capability, compatible screws, titanium construction, and a 56-piece selection, this plate system provides a specialized option for appropriately selected distal radius fracture fixation procedures.

Key Features

• Designed for dorsal distal radius fracture fixation.
• Oblique L-shaped configuration for selected dorsal applications.
• Variable-angle locking technology allows flexible compatible screw trajectories.
• Available in 3-, 4-, and 5-hole configurations.
• Supplied with compatible fixation screws.
• Manufactured from titanium.
• Compact anatomical configuration for selected distal radius fractures.
• Multiple plate lengths provide fixation flexibility.
• Suitable for selected unstable, displaced, and comminuted fractures.
• 56-piece selection provides multiple implant and screw options.
• Designed for professional orthopedic trauma and wrist surgery applications.
• Requires compatible variable-angle plating instrumentation.

Product Specifications

FAQs

1. What is a Dorsal Distal Radius Variable Angle Oblique L-Plate?

It is a specialized orthopedic plate designed for selected distal radius fractures requiring dorsal fixation. Its oblique L-shaped design provides targeted support while compatible variable-angle locking screws provide flexible fixation trajectories.

2. What is the purpose of the oblique L-shaped design?

The oblique L-shaped configuration is intended to accommodate selected dorsal distal radius anatomy and fracture patterns, providing a targeted fixation profile around the distal radius.

3. What does variable-angle locking mean?

Variable-angle locking allows compatible screws to be inserted at different permitted trajectories within the manufacturer’s specified range. This may help the surgeon target selected fracture fragments and optimize bone purchase.

4. What hole sizes are available?

The product is available in 3-, 4-, and 5-hole configurations, offering different options for plate length and screw distribution.

5. What material is used to manufacture the plates?

The plates are manufactured from titanium. The exact titanium grade should be confirmed against the manufacturer’s technical specifications.

6. Are screws included?

Yes. The product includes compatible screws. Exact screw dimensions, quantities, and lengths should be verified against the manufacturer’s detailed set configuration.

7. What types of distal radius fractures can be treated with a dorsal plate?

Dorsal plating may be considered for selected displaced, unstable, comminuted, or dorsal fragment-dominant distal radius fractures. The appropriate fixation approach depends on the patient’s anatomy and fracture characteristics.
